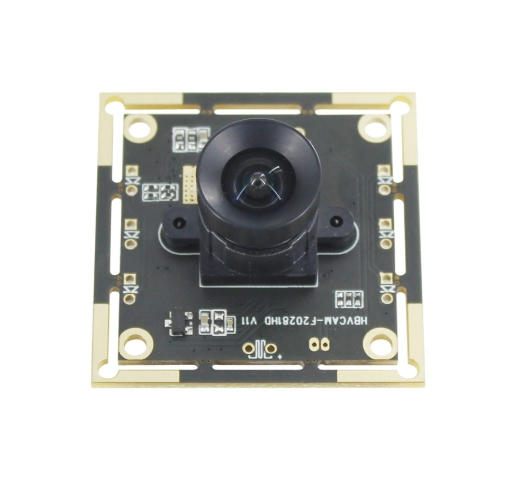

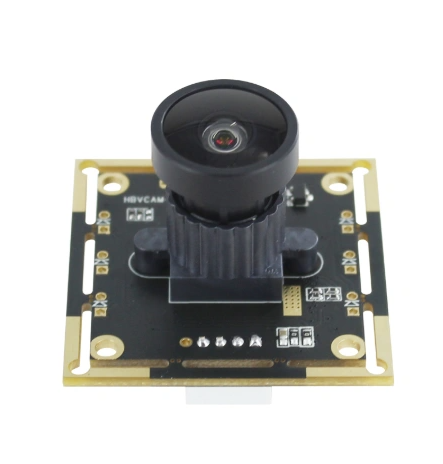

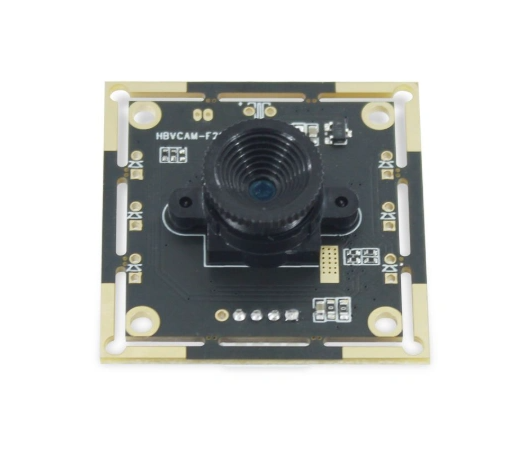

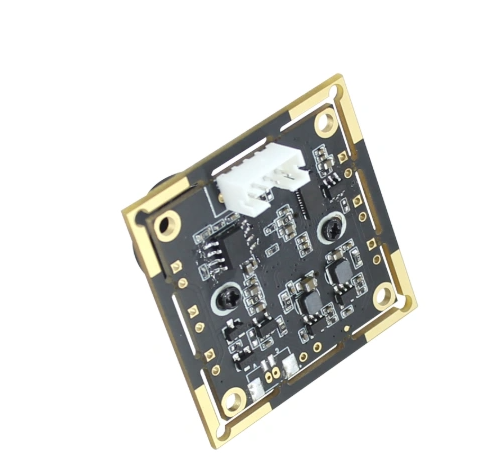

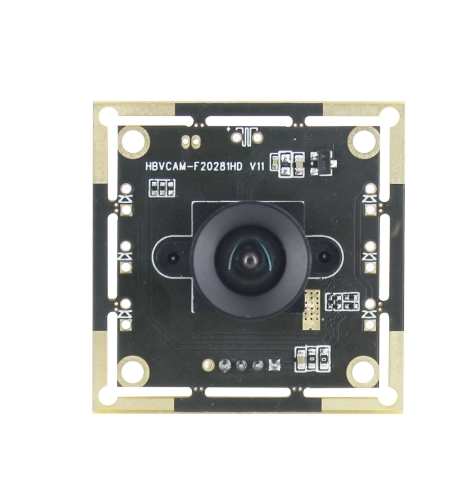

1. Standard industrial camera size: 38mm*38mm/32mm* 32mm
2. The effects of portrait, facial recognition, and recognition are relatively good
3. Multiple lens options available
4. 6 plug-in lights can be added and soldered (with infrared and white light), which can be made into an on/off image or photosensitive control. There is a power expansion port with an external light board
5. With hardware wide dynamic range, the original phase 5268 photosensitive chip has a dynamic range of 85dB
6. Can achieve 60 frames, with no wide dynamic effect at 60 frames
Product Specification:
|
Module No. |
F20281HD V11 |
|
Module Size |
38mm × 38mm × 17.2mm±0.5MM |
|
Temperature (Operation) |
-30°C to 70°C |
|
Temperature (Stable Image) |
0°C to 50°C |
|
Assembly technique |
SMT (ROSH) |
|
Focus |
Fixed |
|
Object distance |
30CM-infinity |
|
Resolution |
600LW/PH (Center) |
|
PCB printing ink |
Black |
|
interface |
USB 2.0 |
|
Power suuply |
USB bus power |
|
supply voltage |
DC 5V±5% |
|
Maximum Power consumption |
600mW |
|
Operating system request |
Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
|
Sensor |
PS5268 (1/2.7” ) |
|
Seneor Package |
CSP,Bare Die |
|
Maximum resolution |
1920*1080 |
|
Sensitivity |
5800mV /（lux-sec） |
|
Pixel Size |
3µm x 3µm |
|
Maximum Image Transfer Rate |
MJPEG 640x360 30FPS / YUY2 640x360 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 800x600 30FPS / YUY2 800x600 10FPS MJPEG 1024x768 30FPS / YUY2 1024x768 10FPS MJPEG 1280x720 30FPS / YUY2 1280x720 5FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS
MJPEG 640x360 60FPS / YUY2 640x480 30FPS MJPEG 800x600 60FPS / YUY2 800x600 20FPS MJPEG 1280x720 60FPS / YUY2 1280x720 10FPS
|
|
S/N Ratio |
41 db |
|
Max Dynamic Range |
85 db |
|
Shutter type |
Electronic rolling shutter |
|
AGC/AEC/Whiter balance |
Auto |
|
Output Formats |
YUY2/MJPEG |
|
Microphone |
NO |
|
Lens Construction |
2G2P |
|
F/No |
2.4 |
|
EFL |
2.4mm |
|
FOV |
105° |
|
TV Distortion |
<-0.1% |
|
Relative Illumination (Sensor) |
70% |
|
IR Filter |
650±10nm |
|
Module Package |
Anti-electrostatic tray |
|
Certifications |
FCC/CE/ROSH |
