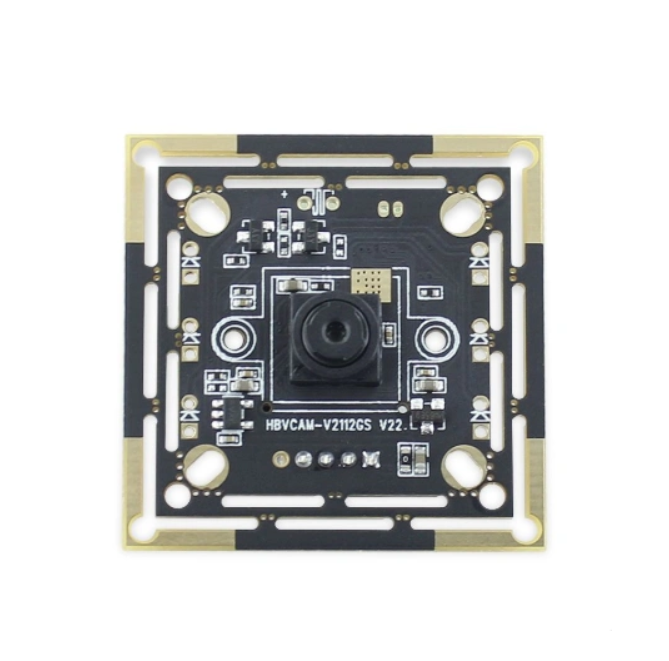

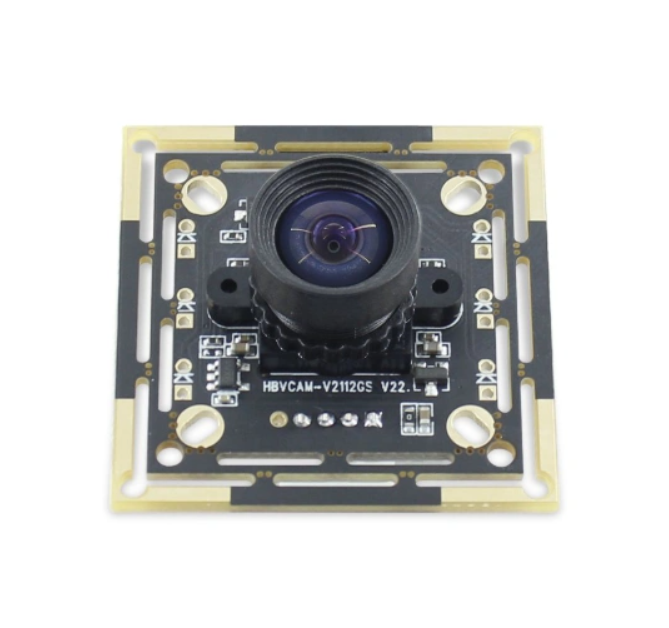

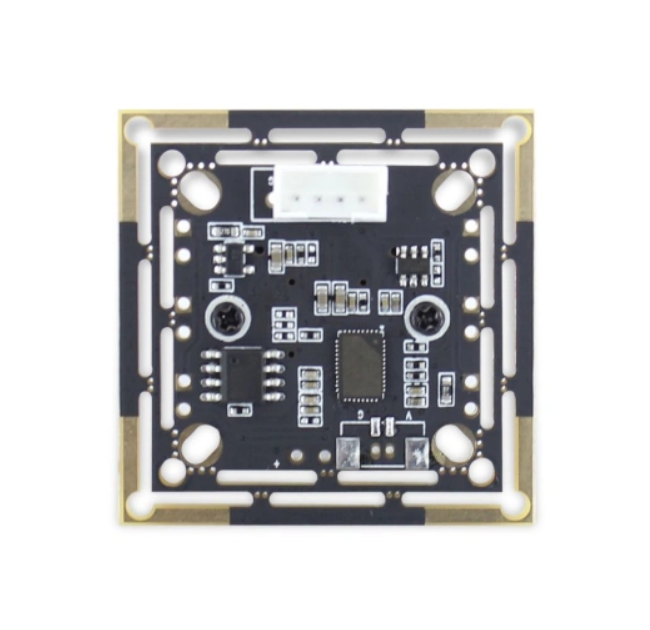

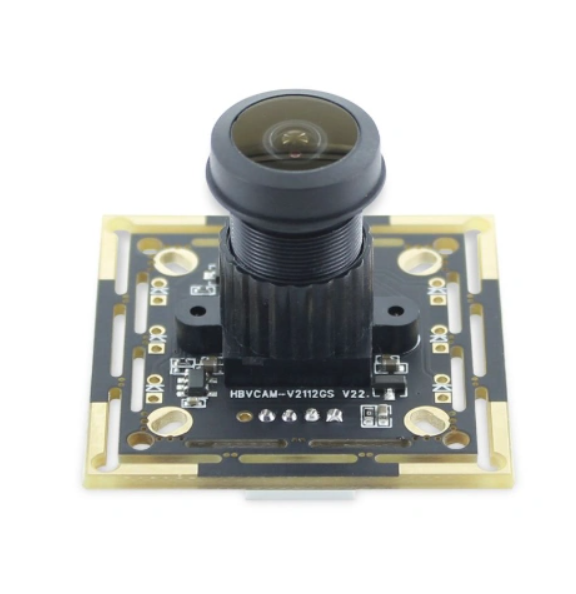

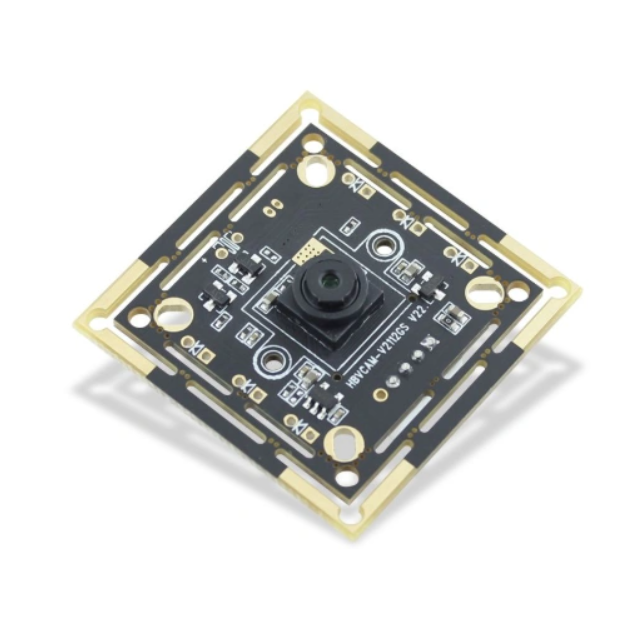

SANSETECH 0.3MP Global Shutter Black and White High-speed Scanning Camera Module
1. The Frame Rate can reach to 120FPS
2. Support OTG and UVC protocol
3. It can add 850IR Led Light
4. It can be used at high speed scanner equipment
SANSETECH 0.3MP Global Shutter Black and White High-speed Scanning Camera Module
* Product size: 38 * 38 *16 ± 0.5 MM
* Product sensor: OV7251 (1/7.5 '')
* Maximum resolution, format and frame rate: 640X480 MJPEG 120FPS
* Maximum viewing angle: 60 degree
* Cable: 4P-2.0MM-40CM
Specifications
|
Module No. |
V2112GS V11 |
|
Module Size |
38mm × 38mm × 6.7mm±0.2MM |
|
Temperature (Operation) |
-30°C to 70°C |
|
Temperature (Stable Image) |
0°C to 50°C |
|
Assembly technique |
SMT (ROSH) |
|
Focus |
Fixed |
|
Object distance |
30CM-infinity |
|
Resolution |
600LW/PH (Center) |
|
PCB printing ink |
Black |
|
interface |
USB 2.0 |
|
Power suuply |
USB bus power |
|
supply voltage |
DC 5V±5% |
|
Maximum Power consumption |
500 mW |
|
Operating system request |
Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
|
Sensor |
OV7251 (1/7.5” ) |
|
Seneor Package |
CSP,Bare Die |
|
Maximum resolution |
640*480 |
|
Sensitivity |
2800mV /（lux-sec） |
|
Pixel Size |
3µm x 3µm |
|
Maximum Image Transfer Rate |
MJPEG 160x120 120FPS / YUY2 160x120 30FPS MJPEG 320x240 120FPS / YUY2 320x240 30FPS MJPEG 352x288 120FPS / YUY2 352x288 30FPS MJPEG 640x480 120FPS / YUY2 640x480 30FPS
|
|
S/N Ratio |
39db |
|
Max Dynamic Range |
69.6db |
|
Shutter type |
Global shutter |
|
AGC/AEC/Whiter balance |
Auto |
|
Output Formats |
YUY2/MJPEG |
|
Microphone |
NO |
|
Lens Construction |
4P |
|
F/No |
2.8 |
|
EFL |
2.6 mm |
|
FOV |
35° |
|
TV Distortion |
<1% |
|
Relative Illumination (Sensor) |
70% |
|
IR Filter |
650±10nm |
|
Module Package |
Anti-electrostatic tray |
|
Certifications |
FCC/CE/ROSH |
