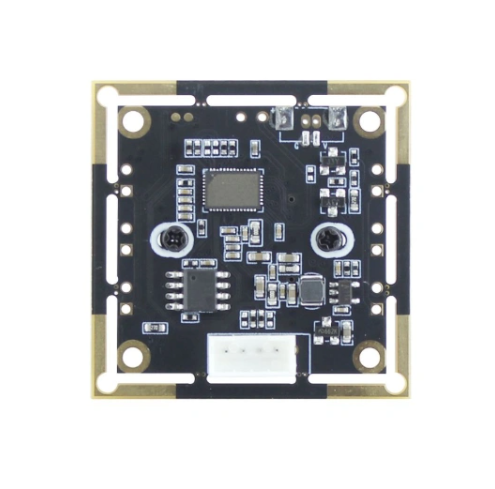

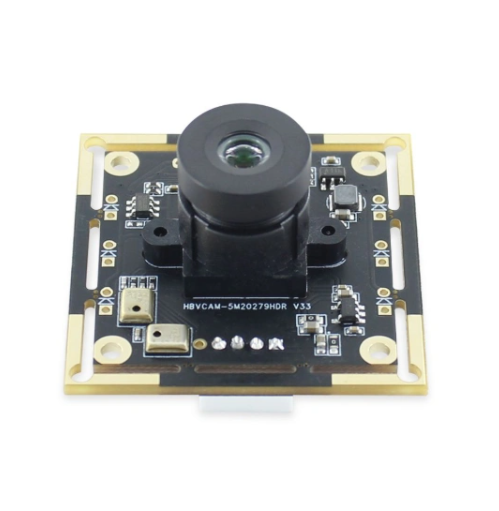

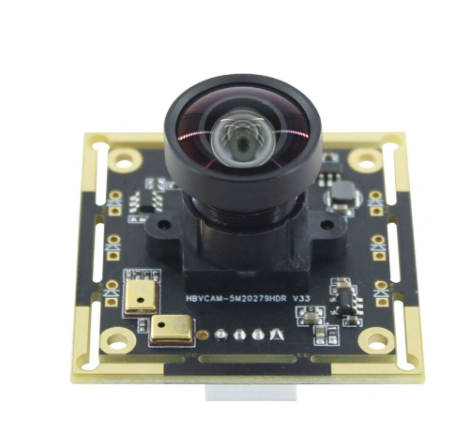

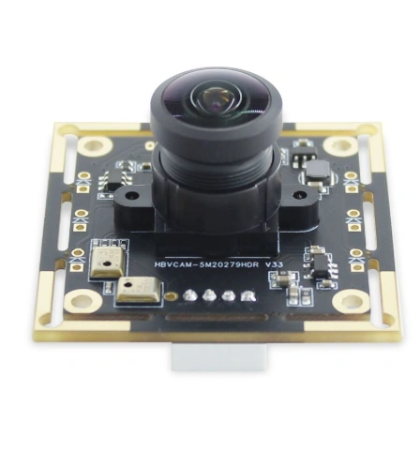

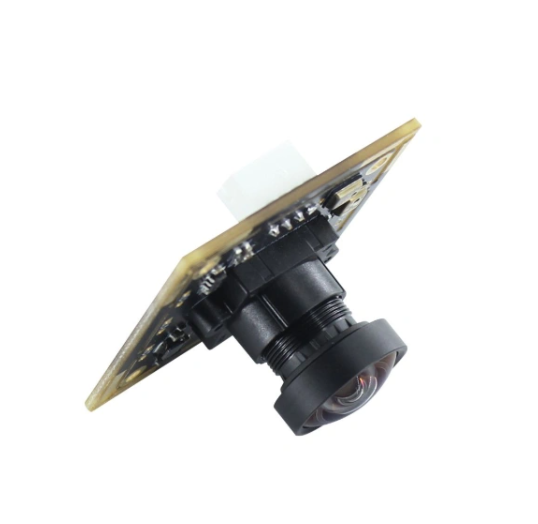

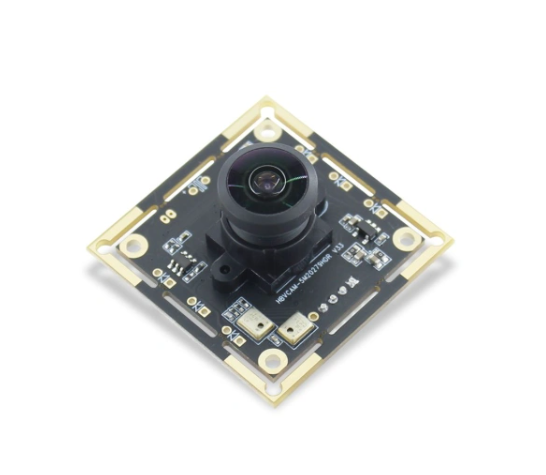

SANSETECH 5MP 2K built-in camera module for All-in-one Machine
*Standard industrial camera 38*38mm/ 32mm*32mm structure
*1/2.5 '' large pixel resolution
*Multiple lens options
*6 plug-in lamps can be welded (infrared white lamp can be used), which can be made into an on/off diagram or light sensitive control lamp
*MJPEG-2592x1944 can be 30 frames
* With real hardware, wide dynamic 85db, backlight shooting
SANSETECH 5MP 2K built-in camera module for All-in-one Machine
*5MP CMOS Camera Module
*Size:38*38*17.6±0.5 MM
*Sensor：PS5520(1/2.5'')
*Maximum Resolution： 2592*1944 mjpeg 30FPS
*Fov ：125° （ Lens can be adjustable,different Lens,FOV different）

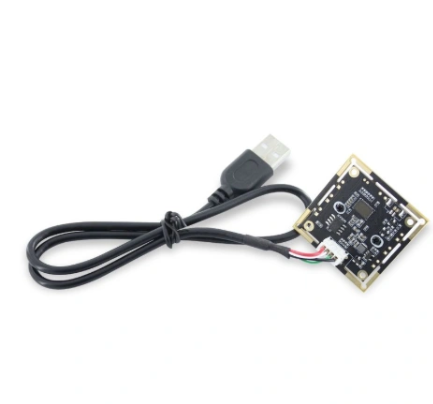

*Interface:USB2.0
*Focus:Fixed
*Output Formats:YUY2/MJPEG
*Supply voltage:DC 5V±5%
*Operating system request:Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc
|
Module No. |
5M20279HDR V22 |
|
Module Size |
38mm × 38mm × 22mm±0.5MM |
|
Temperature (Operation) |
-30°C to 70°C |
|
Temperature (Stable Image) |
0°C to 50°C |
|
Assembly technique |
SMT (ROSH) |
|
Focus |
Fixed |
|
Object distance |
30CM-infinity |
|
Resolution |
600LW/PH (Center) |
|
PCB printing ink |
Black |
|
interface |
USB 2.0 |
|
Power suuply |
USB bus power |
|
supply voltage |
DC 5V±5% |
|
Maximum Power consumption |
500 mW |
|
Operating system request |
Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
|
Sensor |
PS5520 (1/2.5” ) |
|
Seneor Package |
CSP,Bare Die |
|
Maximum resolution |
2592*1944 |
|
Sensitivity |
2400mV /（lux-sec） |
|
Pixel Size |
2.2µm x 2.2µm |
|
Maximum Image Transfer Rate |
MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 960x540 30FPS / YUY2 960x540 15FPS MJPEG 1280x720 30FPS / YUY2 1280x720 8FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 2592x1944 30FPS / YUY2 2592x1944 2FPS
|
|
S/N Ratio |
39db |
|
Max Dynamic Range |
85db |
|
Shutter type |
Electronic rolling shutter |
|
AGC/AEC/Whiter balance |
Auto |
|
Output Formats |
YUY2/MJPEG |
|
Microphone |
Support |
|
Lens Construction |
5G |
|
F/No |
1.55 |
|
EFL |
2.96 mm |
|
FOV |
125° |
|
TV Distortion |
<8% |
|
Relative Illumination (Sensor) |
70% |
|
IR Filter |
650±10nm |
|
Module Package |
Anti-electrostatic tray |
|
Certifications |
FCC/CE/ROSH |
