| Brand | SANSETECH |
| Model | 100822_V1 |
| Image sensor | AR0234 1/2.6 2M Global shutter |
| Lens Specifications | F#2.0 ，F Length 2.26mm |
| Field of view angle | D210° H190° Y118° |
| Resolution | 3840*1200 60fps |
| Image format | MJPG,H264; MP4(H265) |
| Image Effects | DENOISE, SHADING, SATUATION, CONTRAST |
| IMU | TDK45686 600HZ |
| Synchronicity | Synchronization offset between the two sensors is <1 µs; the IMU provides 10 samples per frame. |
| Dropped frames | No frame loss for UVC/UAC; only 1 frame lost over a cumulative 22 hours of recording. |

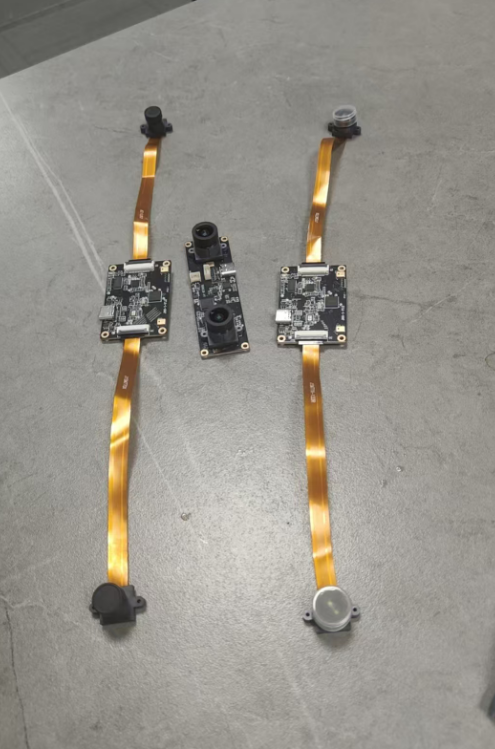

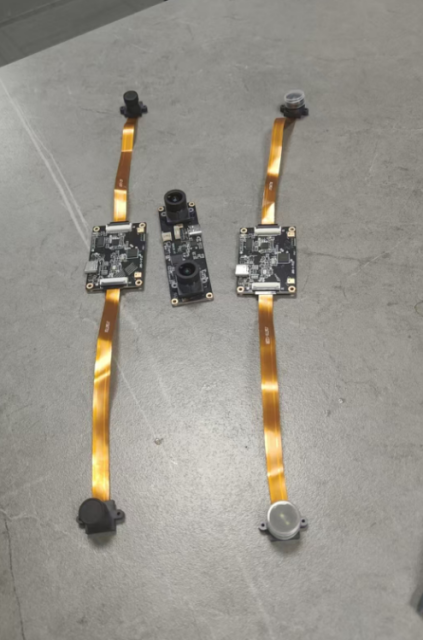

| Product Dimensions | 80×30 mm two-board stacked design |

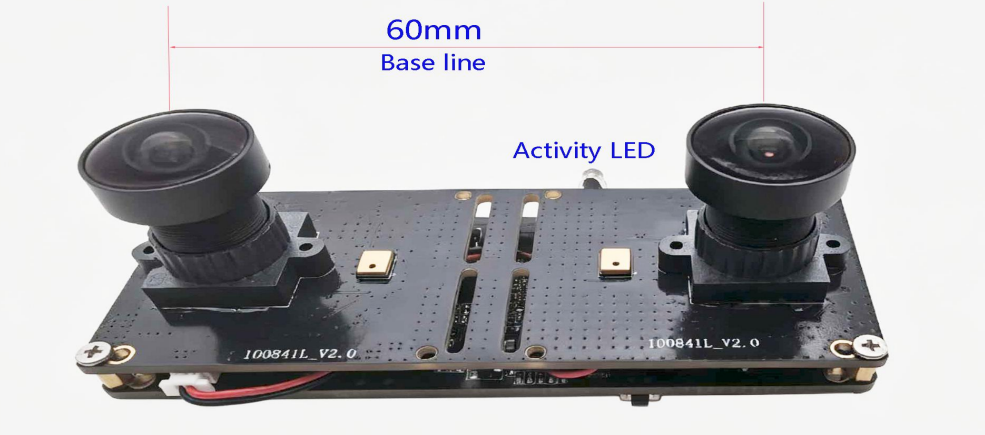

| Key Features | 1920×1200, 60 fps, global shutter, synchronized binocular camera. |

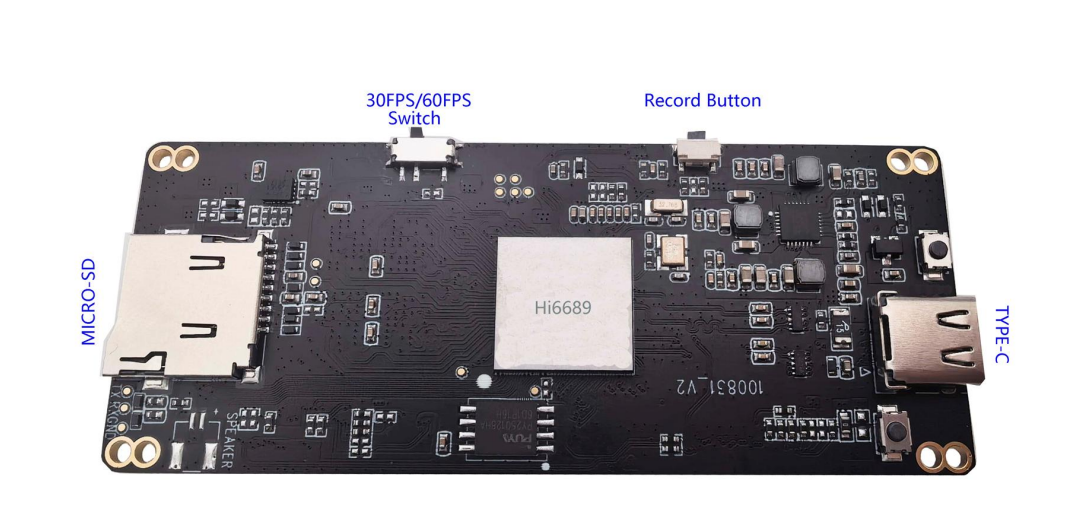

| Output interface | USB 3.2 UVC: H.264, MJPG; video recording in MP4 (H.265) |
| Additional data | IMU data (SEI embedding standard), dual-channel digital microphone |
| Power consumption | Powered via a Type-C port (5V); total power consumption is 2.6W. |
| Applicable Scenarios | AI data collection, robotics, binocular ranging |
