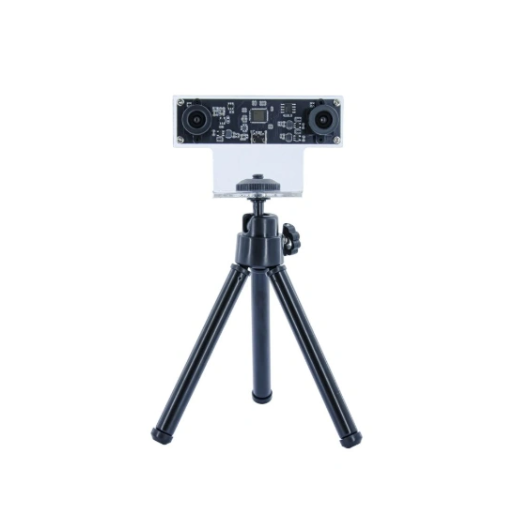

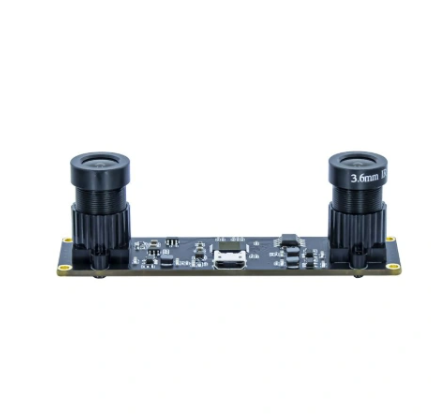

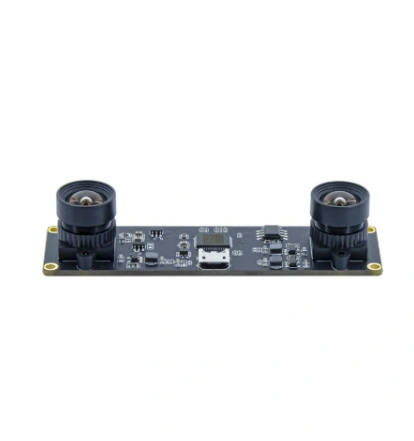

SANSETECH OV4689 4M Pixel HD Dual Lens 3D Synchronous CMOS Camera Module
*Size:80*22*24.5±0.5 MM
*Sensor：OV4689*2(1/3'')

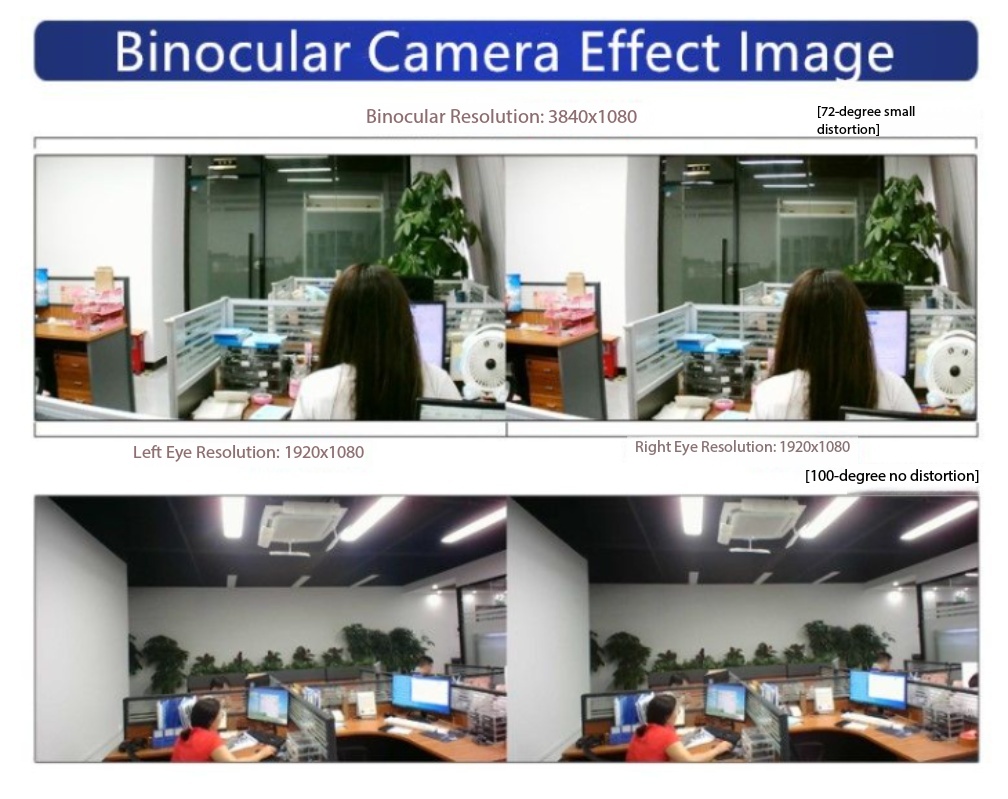

*Maximum Resolution：3840*1080 YUV/MJPEG 30FPS

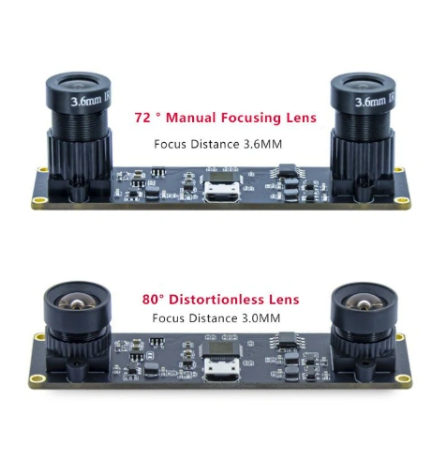

*Fov：72°（ Lens can be adjustable,different Lens,FOV different）
*Interface:USB2.0
*Focus:fixed
*Output Formats:YUY2/MJPEG
*Supply voltage:DC 5V±5%
*Operating system request:Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc
SANSETECH OV4689 4M Pixel HD Dual Lens 3D Synchronous CMOS Camera Module
*OV4689 is a high-performance 4 megapixel camerachip sensor designed in the native 16:9 format for the next generation of monitoring and security system. The sensor adopts advanced 2 μ momnibsi-2 ™ Pixels provide state-of-the-art low light sensitivity and high dynamic range (HDR)
* this is binocular synchronous camera module
*Multiple Resolution for your options
*Multiple Lens for your options
|
Module No. |
4M2214HD-2 V11 |
|
Module Size |
80mm × 22mm × 17.50mm±0.5MM |
|
Temperature (Operation) |
-30°C to 70°C |
|
Temperature (Stable Image) |
0°C to 50°C |
|
Assembly technique |
SMT (ROSH) |
|
Focus |
Fixed |
|
Object distance |
30CM-infinity |
|
Resolution |
600LW/PH (Center) |
|
PCB printing ink |
Black |
|
interface |
USB 2.0 |
|
Power suuply |
USB bus power |
|
supply voltage |
DC 5V±5% |
|
Maximum Power consumption |
1100 mW |
|
Operating system request |
Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
|
Sensor |
OV4689 (1/3” ) |
|
Seneor Package |
CSP,Bare Die |
|
Maximum resolution |
2688*1520 |
|
Sensitivity |
1900mV /（lux-sec） |
|
Pixel Size |
2µm x 2µm |
|
Maximum Image Transfer Rate |
MJPEG 1280x480 30FPS / YUY2 1280x480 10FPS MJPEG 2160x1080 30FPS / YUY2 2160x1080 3FPS MJPEG 2560x720 30FPS / YUY2 2560x720 3FPS MJPEG 3040x1520 30FPS / YUY2 3040x1520 1FPS MJPEG 3840x1080 30FPS / YUY2 3840x1080 1FPS MJPEG 3840x1520 30FPS / YUY2 3840x1520 1FPS |
|
S/N Ratio |
38.3db |
|
Max Dynamic Range |
64.6db |
|
Shutter type |
Electronic rolling shutter |
|
AGC/AEC/Whiter balance |
Auto |
|
Output Formats |
YUY2/MJPEG |
|
Microphone |
NO |
|
Lens Construction |
2G2P |
|
F/No |
2.4 |
|
EFL |
3.0 mm |
|
FOV |
80° |
|
TV Distortion |
<5% |
|
Relative Illumination (Sensor) |
70% |
|
IR Filter |
650±10nm |
|
Module Package |
Anti-electrostatic tray |
|
Certifications |
FCC/CE/ROSH |
