1. Structure and hole position of standard advertising machine
2. High cost effective

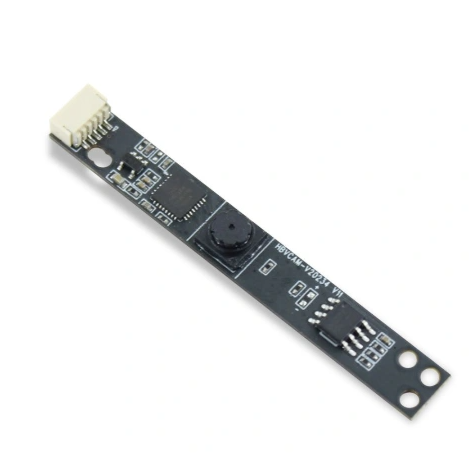

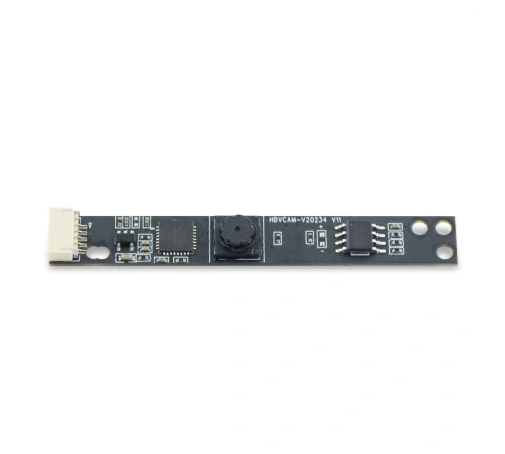

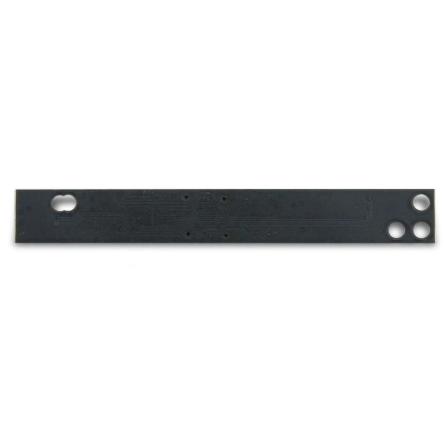

SANSETECH OV7675 0.3M Pixel USB CMOS Camera Module for advertising Machine
* Size :60mm × 8mm × 4.2mm±0.2MM
* Sensor：OV7675(1/9'')
* Maximum Resolution ：640*480 30fps
* Fov：60° （Lens can be adjustable,different Lens,FOV different)
* Interface:USB2.0
* Focus:fixed
* Output Formats:YUY2
* Supply voltage:DC 5V±5%
* Operating system request:Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc
Specifications
|
Module No. |
V20234 V11 |
|
Module Size |
60mm × 8mm × 4.2mm±0.2MM |
|
Temperature (Operation) |
-30°C to 70°C |
|
Temperature (Stable Image) |
0°C to 50°C |
|
Assembly technique |
SMT (ROSH) |
|
Focus |
Fixed |
|
Object distance |
30CM-infinity |
|
Resolution |
600LW/PH (Center) |
|
PCB printing ink |
Black |
|
interface |
USB 2.0 |
|
Power suuply |
USB bus power |
|
supply voltage |
DC 5V±5% |
|
Maximum Power consumption |
250mW |
|
Operating system request |
Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
|
Sensor |
OV7675 (1/9” ) |
|
Seneor Package |
CSP,Bare Die |
|
Maximum resolution |
640*480 |
|
Sensitivity |
1800mV /（lux-sec） |
|
Pixel Size |
2.5µm x 2.5µm |
|
Maximum Image Transfer Rate |
YUY2 160x120 30FPS YUY2 176x144 30FPS YUY2 320x240 30FPS YUY2 352x288 30FPS YUY2 640x480 30FPS
|
|
S/N Ratio |
38 db |
|
Max Dynamic Range |
71 db |
|
Shutter type |
Electronic rolling shutter |
|
AGC/AEC/Whiter balance |
Auto |
|
Output Formats |
YUY2 |
|
Microphone |
NO |
|
Lens Construction |
2P |
|
F/No |
2.8 |
|
EFL |
2.6mm |
|
FOV |
60° |
|
TV Distortion |
<1% |
|
Relative Illumination (Sensor) |
70% |
|
IR Filter |
650±10nm |
|
Module Package |
Anti-electrostatic tray |
|
Certifications |
FCC/CE/ROSH |
