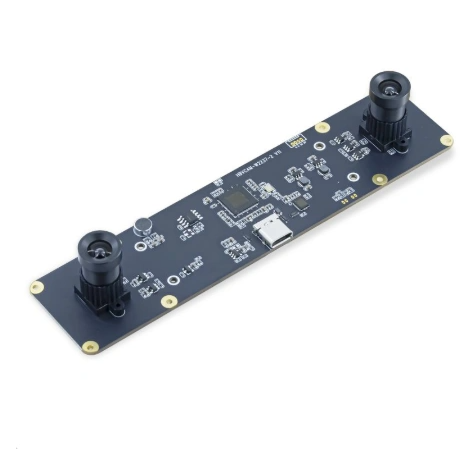

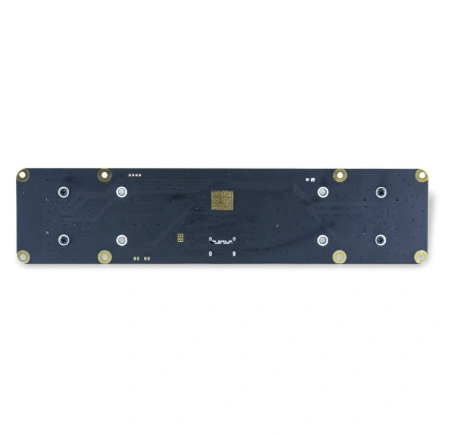

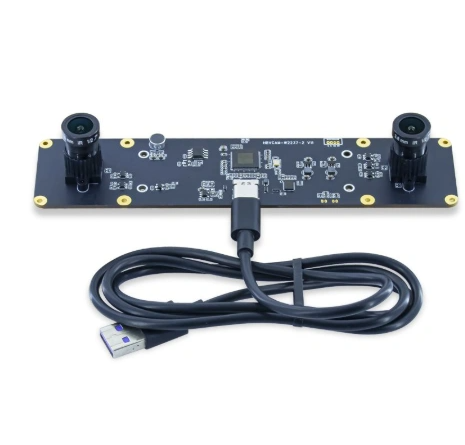

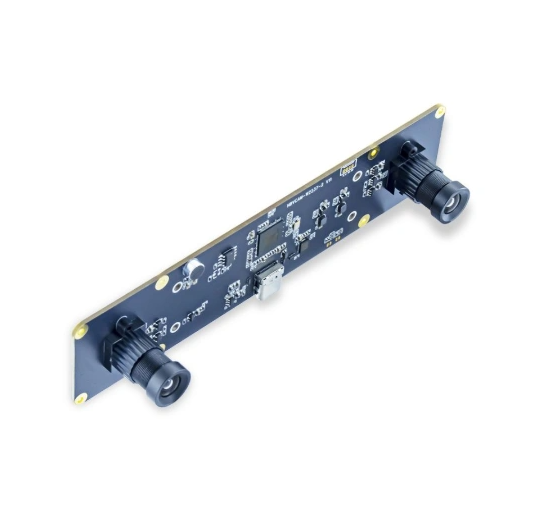

SANSETECH OV9281 1 megapixel black and white global exposure binocular synchronous 120 frame camera depthcamera
*720P Binocular Synchronization Camera Module
*Black and White global Exposure camera module
* the Frame rate can reach to 120FPS
*Type-C interface
*With analog Microphone
*The lens can be adjusted.
SANSETECH OV9281 1 megapixel black and white global exposure binocular synchronous 120 frame camera depthcamera
|
Module No. |
W2237-2 V11 |
|
Module Size |
156mm × 36mm ×24.60mm±0.5MM |
|
Temperature (Operation) |
-30°C to 70°C |
|
Temperature (Stable Image) |
0°C to 50°C |
|
Assembly technique |
SMT (ROSH) |
|
Focus |
Fixed |
|
Object distance |
30CM-infinity |
|
Resolution |
600LW/PH (Center) |
|
PCB printing ink |
Black |
|
interface |
USB 2.0 |
|
Power suuply |
USB bus power |
|
supply voltage |
DC 5V±5% |
|
Maximum Power consumption |
1000 mW |
|
Operating system request |
Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
|
Sensor |
OV9281 (1/4” ) |
|
Seneor Package |
CSP,Bare Die |
|
Maximum resolution |
2560*720 |
|
Sensitivity |
1300mV /（lux-sec） |
|
Pixel Size |
3µm x 3µm |
|
Maximum Image Transfer Rate |
MJPEG 1280x400 120FPS / YUY2 1280x40 120FPS MJPEG 1280x480 100FPS / YUY2 1280x480 100FPS MJPEG 1600x600 100FPS / YUY2 1600x600 100FPS MJPEG 2560x720 60FPS / YUY2 2560X720 60FPS
|
|
S/N Ratio |
38db |
|
Max Dynamic Range |
68db |
|
Shutter type |
Electronic rolling shutter |
|
AGC/AEC/Whiter balance |
Auto |
|
Output Formats |
YUY2/MJPEG |
|
Microphone |
NO |
|
Lens Construction |
2G2P |
|
F/No |
2.4 |
|
EFL |
3.6 mm |
|
FOV |
72° |
|
TV Distortion |
<5% |
|
Relative Illumination (Sensor) |
70% |
|
IR Filter |
650±10nm |
|
Module Package |
Anti-electrostatic tray |
|
Certifications |
FCC/CE/ROSH |
