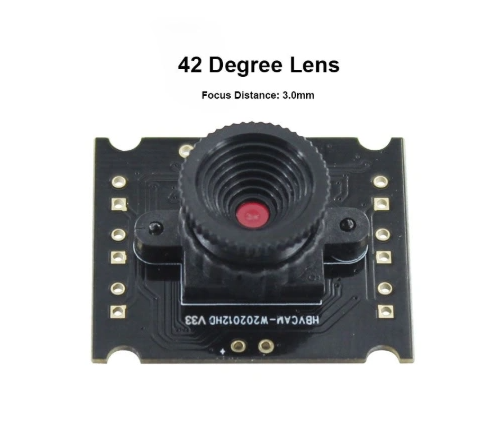

SANSETECH OV9726 720P HD OTG Free Driver PC webcam Camera module
1. Conventional standard 30X25mm structure has great versatility
2. 6 plug-in lamps (infrared white light) can be added for welding, which can be made into an on/off diagram and can also be controlled by light sensitivity
3. Optional lensSANSETECH OV9726 720P HD OTG Free Driver PC webcam Camera module
4. High cost effective
SANSETECH OV9726 720P HD OTG Free Driver PC webcam Camera module
* Size :30mm × 25mm × 14mm±0.2MM
* Sensor：OV9726 (1/6.5” )
* Maximum Resolution：1280*800 30fps
* Fov：50° ( Lens can be adjustable,different Lens,FOV different)
* Interface:USB2.0
* Focus:fixed
* Output Formats:YUY2/MJPEG
* Supply voltage:DC 5V±5%
* Operating system request:Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc
|
Module No. |
W202012HD V33 |
|
Module Size |
30mm × 25mm × 12.0mm±0.3MM |
|
Temperature (Operation) |
-30°C to 70°C |
|
Temperature (Stable Image) |
0°C to 50°C |
|
Assembly technique |
SMT (ROSH) |
|
Focus |
Fixed |
|
Object distance |
30CM-infinity |
|
Resolution |
600LW/PH (Center) |
|
PCB printing ink |
Black |
|
interface |
USB 2.0 |
|
Power suuply |
USB bus power |
|
supply voltage |
DC 5V±5% |
|
Maximum Power consumption |
650 mW |
|
Operating system request |
Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
|
Sensor |
OV9726 (1/6.5” ) |
|
Seneor Package |
CSP,Bare Die |
|
Maximum resolution |
1280*800 |
|
Sensitivity |
1300mV /（lux-sec） |
|
Pixel Size |
1.75µm x 1.75µm |
|
Maximum Image Transfer Rate |
MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 640x360 30FPS / YUY2 640x360 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 800x600 30FPS / YUY2 800x600 15FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS MJPEG 1280x800 30FPS / YUY2 1280x800 10FPS |
|
S/N Ratio |
36 db |
|
Max Dynamic Range |
70 db |
|
Shutter type |
Electronic rolling shutter |
|
AGC/AEC/Whiter balance |
Auto |
|
Output Formats |
YUY2/MJPEG |
|
Microphone |
NO |
|
Lens Construction |
3P |
|
F/No |
2.8 |
|
EFL |
3.0 mm |
|
FOV |
42° |
|
TV Distortion |
<-1.0% |
|
Relative Illumination (Sensor) |
70% |
|
IR Filter |
650±10nm |
|
Module Package |
Anti-electrostatic tray |
|
Certifications |
FCC/CE/ROSH |
